B54BMP Compact Tri-Clamp Sight Glass – Dixon

Description

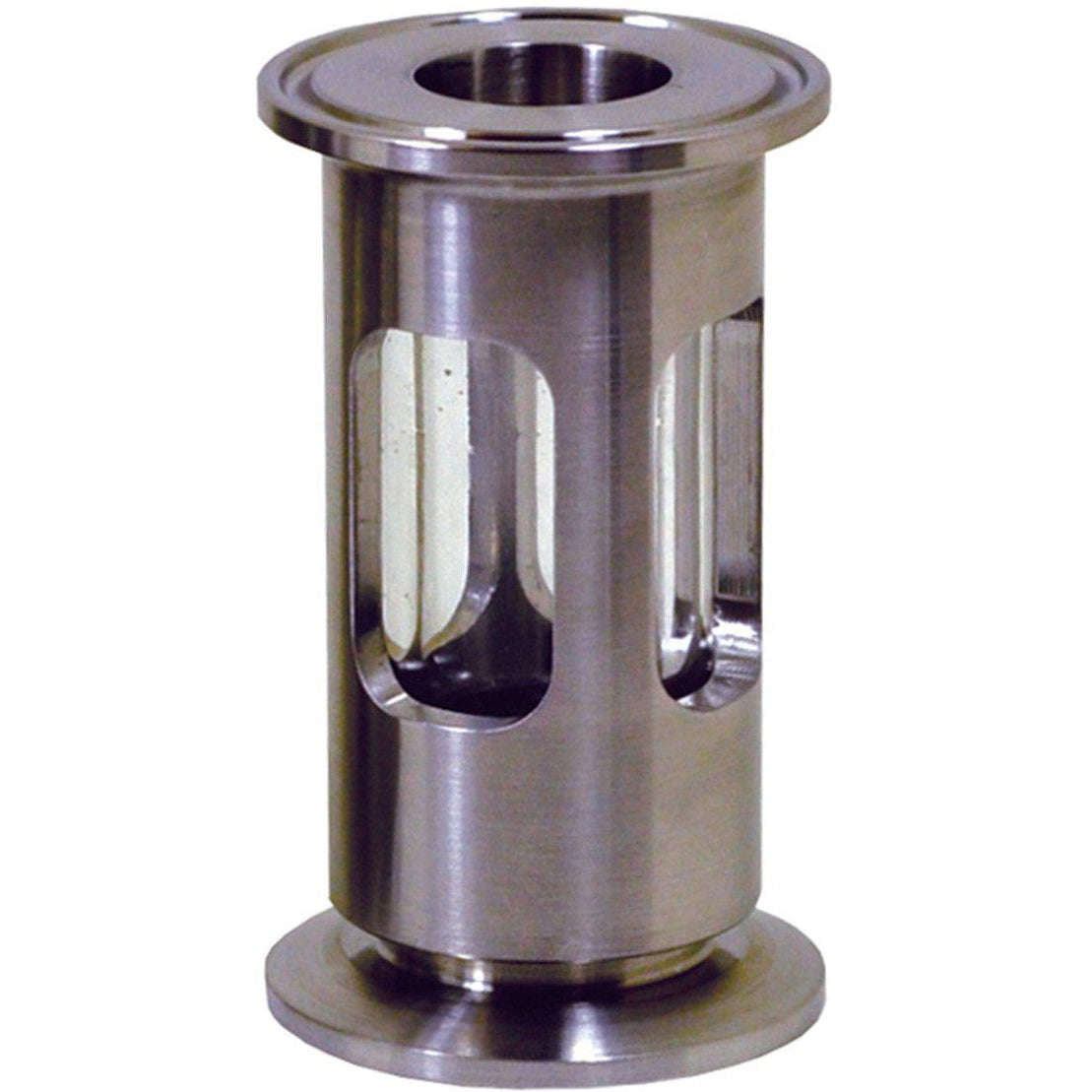

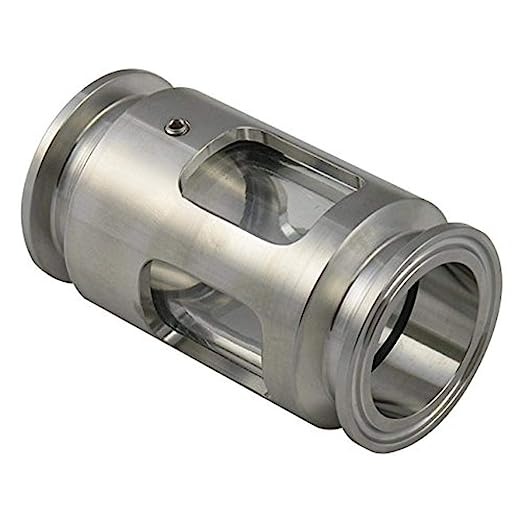

Compact Tri-Clamp Sight Glass – Enhanced Clarity for Hygienic Piping Systems

The Compact Tri-Clamp Sight Glass offers a robust and efficient solution for monitoring fluid and product flow in sanitary piping systems within the food, beverage, biotech, and pharmaceutical sectors. Its compact design is particularly advantageous in hose applications where space is constrained, yet visibility is paramount.

Benefits:

• Constructed from resilient 316L stainless steel for superior corrosion resistance and extended service life.
• Features a borosilicate glass or polycarbonate viewing window, ensuring clear visibility of the process stream.
• Certified to meet ASME A270 and 3A sanitary standards, guaranteeing compliance with stringent hygienic requirements.
• Compact form factor ideal for integration into tight spaces and hose-based systems.
• Designed for ease of cleaning and cost-effective maintenance compared to traditional bolted sight glass configurations.

Engineered with a tri-clamp connection, this sight glass ensures a secure and reliable seal between ferrules or flanges, maintained by a clamp. The durable construction and high-quality materials make it suitable for demanding environments.

Applications:

• Optimized for food, dairy, and beverage sanitary processes, facilitating the monitoring of product and fluid flow.
• Ideal for applications requiring a compact design, particularly in hose setups.

Product Details:

• Body Material: 316L stainless steel
• Sight Glass: Borosilicate Glass or Polycarbonate
• Gasket Material: Buna
• Certifications: ASME A270, 3A Certified
• Catalog Page: DPL418 – 618

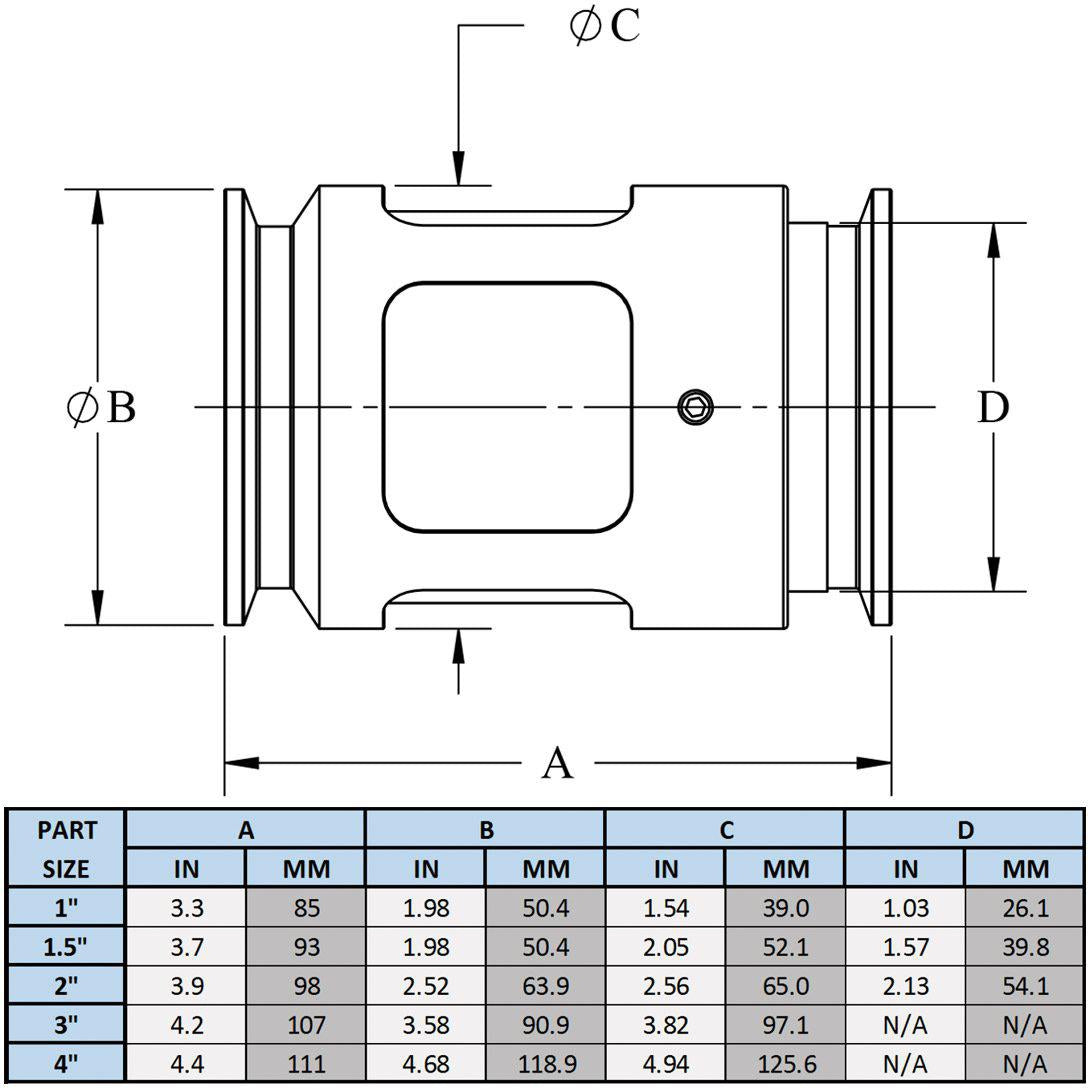

• Dimensions: Dimensional Specifications

The Compact Tri-Clamp Sight Glass is engineered to provide a dependable and durable solution for visibility and flow monitoring in regulated sanitary piping systems, particularly in hose-based configurations.
