B2P Threaded Bevel Seat x Plain Bevel Seat with Hex Nut 45° Elbows – Dixon

Description

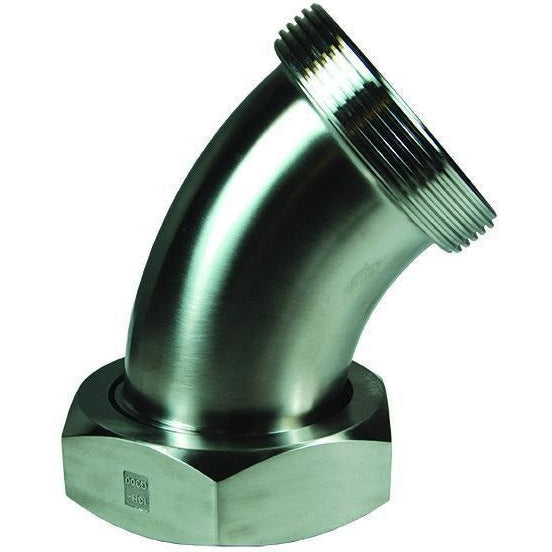

B2P Threaded Bevel Seat x Plain Bevel Seat with Hex Nut 45° Elbows – Dixon

The Dixon B2P Threaded Bevel Seat x Plain Bevel Seat with Hex Nut 45° Elbow is a high-quality sanitary fitting engineered for smooth directional flow changes in hygienic piping systems. Featuring a 45° bend and combining threaded and plain bevel seat ends, this fitting provides a secure, leak-free connection that can be quickly disassembled for cleaning — making it ideal for food, beverage, dairy, and pharmaceutical applications.

Key Benefits

• Versatile Connection Design: One threaded bevel seat end and one plain bevel seat with hex nut end provide flexibility for installation and maintenance.
• Sanitary 45° Elbow: Allows smooth, gentle directional changes with minimal pressure drop and product turbulence.
• Hygienic Construction: Polished interior and exterior surfaces (≤32 Ra) prevent product buildup and ensure full CIP/SIP compatibility.
• Durable Stainless Steel: Manufactured from 304 or 316L stainless steel for excellent corrosion resistance and long service life.
• Easy Maintenance: Bevel seat connections allow for frequent disassembly without damaging the fitting, reducing downtime during cleaning or inspection.

Typical Applications

• Food and dairy processing systems
• Beverage and brewery pipelines
• Biopharmaceutical and cosmetic manufacturing
• Clean-in-place (CIP) process systems

Product Details

• Material: 304 or 316L Stainless Steel
• Connection Type: Threaded Bevel Seat x Plain Bevel Seat with Hex Nut
• Angle: 45°
• Surface Finish: Polished ID/OD (≤32 Ra)
• Size Range: 1″ – 4″
• Standards: 3-A Sanitary, ASME BPE, and FDA compliant

Designed for precision, sanitation, and durability — the Dixon B2P 45° Threaded x Plain Bevel Seat Elbow delivers smooth flow, secure connections, and easy maintenance in every sanitary process system.
