Ampco LH Series

Description

Ampco LH Series – High-Head, Low NPSH Pump for Demanding Sanitary Applications

The Ampco LH Series is the highest-pressure model in the L Series line, built to deliver exceptional head pressure while maintaining low NPSH performance. It’s designed for sanitary applications that demand both high discharge and gentle product handling—such as long transfer lines, filtration systems, or elevated CIP return loops.

Like all L Series models, the LH is constructed with 316L stainless steel fluid ends, 304 stainless adapters, and balanced impellers for smooth, efficient flow. It is 3A certified, fully CIP-compatible, and features a back pull-out design for easy maintenance in hygienic environments.

Key Features:

• High-head pump for long runs or vertical discharge
• Low NPSH design reduces cavitation and improves suction stability
• 316L stainless steel fluid path and heavy-wall construction
• 3A certified and clean-in-place (CIP) ready
• Tri-Clamp connections for sanitary, tool-free assembly

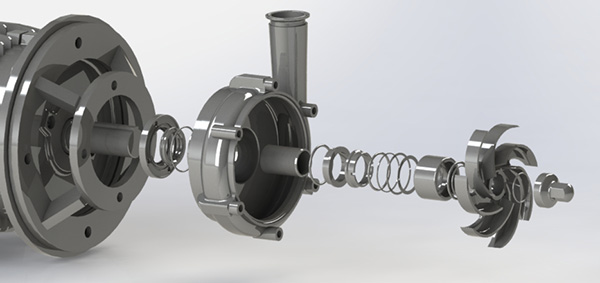

• Back pull-out design simplifies service and maintenance
• Available with multiple mechanical seal options

Performance Capabilities:

• Flow rates up to 1800 GPM (409 m³/h)
• Max inlet pressure: 600 PSI (41 BAR)
• Handles viscosities up to 1200 cP

With its high discharge performance and sanitary compliance, the LH Series is the pump of choice for processors facing long distances, height challenges, or pressure-sensitive applications—delivering power, reliability, and hygiene in one rugged package.
